Single-End Holders
Single-End Holders
The quick and simple low-cost way to boost productivity and increase machine utilization.

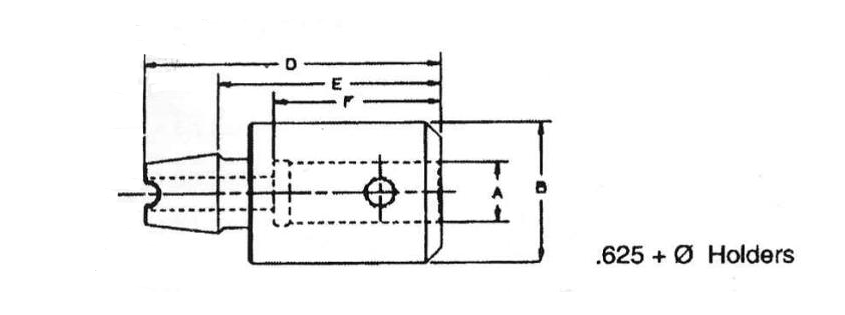

| Part No. | A DIA. | B DIA. | C | D | E | F | Size |
| 210162 | 0.625 | 1.25 | – | 2.4 | 1.4 | 1.62 | RC-1 |
| 210176 | 0.75 | 1.75 | – | 0.75 | 2.75 | 2.03 | RC-1 |
| 210210 | 1 | 2 | – | 4.3 | 3.3 | 2.6 | RC-1 |
| 220162 | 0.625 | 1.75 | 1.25 | 5.5 | 3.75 | 3.5 | RC-2 |
| 220176 | 0.75 | 1.75 | – | 5.5 | 3.75 | 3.88 | RC-2 |
| 220210 | 1 | 2 | – | 5.75 | 4 | 4.44 | RC-2 |
| 230176 | 0.75 | 2.25 | 1.75 | 5.46 | 3 | 3.88 | RC-3 |
| 230210 | 1 | 2.25 | 2 | 6.46 | 4 | 4.44 | RC-3 |
| 230225 | 1.25 | 2.5 | – | 6.46 | 4 | 3.5 | RC-3 |
| 230250 | 1.5 | 2.62 | – | 7.1 | 4.62 | 4.5 | RC-3 |
