No. 100 Adjustable Non-Releasing Tap Holder
No. 100 Adjustable Non-Releasing Tap Holder

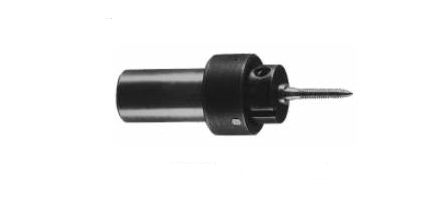

These holders are a pull-out type for use on automatic machines where the spindle is reversed automatically. Taps are held in the holder either directly, or by a bushing. An extra “finish weight” spring is furnished so a finish tap can pick up a rough tapped thread. Holders are supplied with a through hole to end the need for cutting off taps.
| Shank Dia. | Tool No. |
| Non-releasing Holders | |
| 5/8” | 711-100-400 |
| 5/8” | 711-103-100* |
| 3/4” | 711-100-320 |
| 1” | 711-100-322 |
* Miniature Tap Holder
Related products
| Tool No. | Inches | |||||||
| A | B | C | D | E | F | G | H | |
| Adjustable Tap Holders- Non-Releasing | ||||||||
| 711-100-400 | 1/2 | 11/16 | 1-1/16 | 5/8 | 1-1/8 | 5/16 | 2-1/4 | 1-1/2 |
| 711-100-320 | 5/8 | 13/16 | 1-7/16 | 3/4 | 2 | 7/16 | 3 | 2 |
| 711-100-322 | 1 | 1-13/16 | 2 | 1 | 2-1/16 | 5/8 | 3-5/8 | 2-3/8 |
| 711-103-100* | 1/4 | 3/8 | 13/16 | 5/8 | 1-1/8 | — | 15/16 | 15/16 |
| Tool No. | 711-100-400 | 711-100-320 | 711-100-322 | 711-103-100* |
| Body | 211-10002-4 | 211-10006-4 | 211-10008-5 | 211-10302 |
| Head | 211-10020-1 | 211-10027-4 | 211-10024-5 | None |
| Shank | 211-10505-2 | 211-10538-2 | 211-10508-5 | 211-10301 |
| Clamp Screw | 2111-10550 | 211-10559-1 | 92-5035-1040 | 92-5390-606 |
| Cl. Screw Washer | 92-2040-602-12 | 92-2040-1002-20 | 20-2040-1002-20 | None |
| Spring | 211-10551 | 211-10554-1 | 211-10558-2 | 92-1000-1228-22 |
| Ball | 429-1288 | None | None | None |
| Bushing Cl. Screw | 92-5390-806 | 92-5390-808 | 92-5390-1012 | None |
| Finish Tap Spring | 92-1000-1424-19 | 92-1000-1640-18 | 211-10031-1 | None |
| Key | None | None | None | 211-10303 |
| Spring Ret. Screw | None | None | None | 472-606 |
