No. 66 Drilling And Turning Tools
No. 66 Drilling And Turning Tools

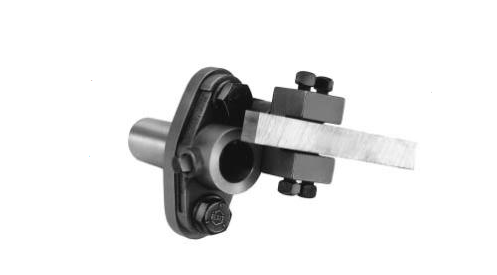

Fully adjustable, with drill held by a bushing in an adjustable head, similar to the No. 65 Adjustable Tool Holders.
The turning blade is mounted in a blade holder, which is securely clamped in an arm protruding from the side of the adjustable head. The blade cuts tangentially and can be adjusted longitudinally along the length of the work. Tools can be adjusted to cut either left hand or right hand. With these adjustments the operator can set his drill in the best position for stick-out with chip clearance and then set the turning blade in its correct relation with the drill.
These tools can be used for chamfering, facing and light turning with drill, center drill or counterbore.
| Tool No. | Shank
Dia. |
Maximum
Turned Diameter |
| 711-66-100 | 5/8” | 3/8” |
| 711-66-120 | 3/4” | 11/16” |
| 711-66-122 | 1” | 1” |
| 711-66-123 | 1-1/4” | 2.4 |
| Inches | |||||||||
| Tool No. | A | B | C | D | E | F | G | H | J |
| 711-66-100 | 1/2 | 19/32 | 13/16 | 5/8 | 1-1/8 | 3/8 | 1-15/16 | 1-15/16 | 5/16 |
| 711-66-120 | 5/8 | 3/16 | 1-1/8 | 3/4 | 1-1/2 | 7/16 | 2-5/8 | 1-13/16 | 9/16 |
| 711-66-122 | 1 | 1-1/8 | 1-1/2 | 1 | 1-3/4 | 11/16 | 3-1/4 | 2-3/8 | 3/4 |
| 711-66-123 | 1.0 | 1.1 | 1.5 | 1.25 | 2.0 | .81 | 4.3 | 3.15 | 1 |
| Tool No. | Inches | R | Blades | |||||
| K | L | M | N | P | Max | Min | ||
| 711-66-100 | 5/16 | 1/4 | 1/4 | 5/16 | 1/2 | 13/16 | 7/16 | 1/4 X 1/4 |
| 711-66-120 | 7/16 | 11/32 | 7/16 | 1/2 | 3/4 | 1-3/32 | 19/32 | 5/16 X 7/16 |
| 711-66-122 | 9/16 | 3/8 | 1/2 | 5/8 | 15/16 | 1-7/16 | 5/8 | 3/8 X 3/8 |
| 711-66-123 | .65 | .65 | .5 | .6 | 1.4 | 1.55 | .75 | 3/8 X 1/2 |
| Tool No. | 711-66-100 | 711-66-120 | 711-66-122 | 711-66-123 |
| Head | 211-6604-1 | 211-6605 | 211-6606 | 211-6616 |
| Clamp Screw | 211-6535-1 | 92-5035-1020 | 92-5035-1228 | 92-5035-1632 |
| Clamp Screw Washer | 211-10545-1 | 92-2040-1002-20 | 20-2040-1204-24 | 92-2040-2604-28 |
| Tool Holder | 211-6607-1 | 211-6608 | 211-6609 | 211-6614 |
| Tool Holder Clamp | 211-6610 | 211-6611 | 211-6612 | 211-6615 |
| Tool Holder Cl. Washer | 92-2040-602-12 | 92-2040-1002-20 | 92-2040-1202-20 | 92-2040-1202-20 |
| Tool Holder Cl. Nut | 92-6010-611 | 92-6015-1012 | 92-6015-1214 | 92-6015-1214 |
| Blade Clamp Screw | 92-5012-8012 | 92-5010-824 | 92-5012-1020 | 92-5012-1020 |
| Drill Clamp Screw | 92-5012-812 | 92-5012-816 | 92-5012-1016 | 92-5012-1020 |
| Shank | 211-6601 | 211-6602 | 211-6603 | 211-6537 |
| Blade | 711-94074 | 711-94082 | 711-94085 | 711-94085 |
