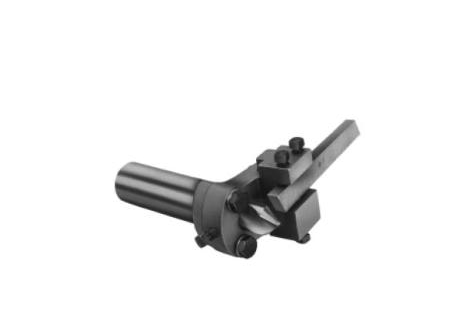

No. 172 Combination Right And Left Hand Adjustable Centering And Facing Tools

No. 172 Combination Right And Left Hand Adjustable Centering And Facing Tools

These tools offer a blade and center drill on a head which can be adjusted with relation to the tool body. This lets you center the drill to the work in the spindle, thereby eliminating the need for grinding an “off-center” center on the drill. You can change these tools quickly and easily from right-hand to left-hand. Since they are self-contained, there are no extra parts to be lost. This flexibility makes it possible to cut down on your tool inventory, one tool serving a dual purpose. they are furnished with one hardened steel blade and one right-hand center drill.

Shank Dia. Max. Diameter (Inches) Tool

No.

5/8 1/2 711-172-200
3/4 3/4 711-172-120
1 1 711-172-222
Category
  Inches Tool No. A B C D E F G H J K L M (Blade) 711-172-200 5/16 11/16 1-3/16 5/8 1-1/2 3/8 1-19/32 1-3/32 1-3/16 5/16 5/16 1/4 x 5/16 711-172-120 3/8 15/16 1-19/32 3/4 2 1/2 2-13/32 1-19/32 1-11/16 3/4 1/2 1/4 x 1/2 711-172-222 5/8 15/16 1-19/32 1 2-7/8 11/16 2-13/32 1-19/32 1-11/16 3/4 1/2 1/4 x 1/2
Tool No. 711-172-200 711-172-120 711-172-222
Head 211-17201-3 211-17209 211-17204-2
Head Clamp Wash 211-17208 472-344 472-344
Washer 211-17203 92-2040-802-16 92-2040-802-16
Tool Holder 211-17203 211-17206 211-17206
Tool Holder Cl. Scr. 92-5380-816 92-5380-816 92-5380-816
Blade Clamp Scr.- L 92-5191-818 92-5191-828 92-5191-828
Blade Clamp Scr.- S 92-5191-818 92-5191-814 92-5191-814
Right Hand Ctr. Drill 211-5012-816 92-96002 211-96003
Drill Clamp Screw 92-5012-816 92-5010-824 92-5010-824
Shank 211-17207-1 211-17210 211-17211
Blade 711-94075 711-94078 711-94078
