Feeding Finger Adapters
Feeding Finger Adapters

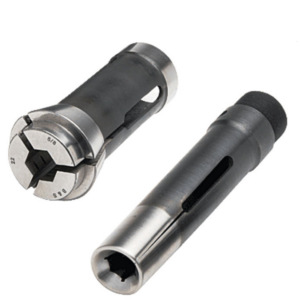

Workholding solutions for Automatic Screw Machines. Feeding finger adapters below.
*Feed tube extension only, no reduction.
Tables for selecting Adapters can be found here.
| Adaptor No. | Reduction To From | External L.H. Thread | Internal L.H. Thread | Tool No. | |
| 00 | 10 | 00 | 9/16-20 | .417-32 | 711-5-100 |
| 10A-00 | 10A | 00 | 5/8-32 | .417-32 | 711-5-210 |
| 10A-10 | 10A | 10 | 5/8-32 | 9/16-20 | 711.5-310 |
| 10A | * | * | 5/8-32 | 5/8-32 | 711-5-110 |
| 10AA-10 | 10AA | 10 | 7/8-32 | 9/16-32 | 711-5-410 |
| 10AA-10A | 10AA | 10A | 7/8-32 | 5/8-32 | 711-5-510 |
| 11-10 | 21 | 10 | 13/16-20 | 9/16/-20 | 711-5-111 |
| 11-11A-11AA | 21 | 11A or 11AA | 3/16-20 | 13/16-20 | 711-5-211 |
| 20A-10 | 11 | 10 | 11/16-20 | 9/16-20 | 711-5-120 |
| 20-11 | 11A | 11 | 13/16-20 | 11/16-20 | 711-5-320 |
| 20-11A-11AA | * | * | 13/16-20 | 13/16-20 | 711-5-240 |
| 21A-10 | 21A | 10 | 15/16-20 | 9/16-20 | 711-5-121 |
| 21A-11 | 21A | 11 | 15/16-20 | 11/16-20 | 711-5-321 |
| 21A-11A-11AA | 21A | 11A-11AA | 15/16-20 | 13/16-20 | 711-5-221 |
| 22-10 | 22 | 10 | 1-3/16-20 | 9/16-20 | 711-5-122 |
| 22-11 | 22 | 11 | 1-3/16-20 | 11/16-20 | 711-5-1222 |
| 22-11A-11AA | 22 | 11A or 11AA | 1-3/16-20 | 13/16-20 | 711-5-222 |
| 22H-10 | 22H | 10 | 1-7/16-20 | 9/16-20 | 711-5-622 |
| 22H-11 | 22H | 11 | 1-7/16-20 | 11/16-20 | 711-5-1322 |
| 22H-11A-11AA | 22H | 11AA | 1-7/16-20 | 13/16-20 | 711-5-722 |
| 22H-22 | 22H | 22 | 1-7/16-20 | 1-3/16-20 | 711-5-822 |
| 22H | * | * | 1-7/16-20 | 1-7/16-20 | 711-5-522 |
| 22D-10 | 22D | 10 | 1-11/16-20 | 9/16-20 | 711-5-922 |
| 22D-11A-11AA | 22D | 11A or 11AA | 1-11/16-20 | 13/16-20 | 711-5-1022 |
| 22D-22 | 22D | 22 | 1-11/16-20 | 1-3/16-20 | 711-5-322 |
| 22D-22H | 22D | 22H | 1-11/16-20 | 1-7/16-20 | 711-5-422 |
| 22DD-10 | 22DD | 10 | 1-13/16-20 | 9/16-20 | 711-5-1422 |
| 22DD-11AA | 22DD | 11AA | 1-3/16-20 | 13/16-20 | 711-5-1522 |
| 22DD-22 | 22DD | 22 | 1-13/16-20 | 1-3/16-20 | 711-5-1622 |
| 22DD-22D | 22DD | 22D | 1-13/16-20 | 1-11/16-20 | 711-5-1822 |
| 22DD-22H | 22DD | 22H | 1-13/16-20 | 1-7/16-20 | 711-5-1722 |
| 23 | * | * | 2-1/4-20 | 2-1/4-20 | 711-5-423 |
| 23-22 | 23 | 22 | 2-1/4-20 | 1-13/16-20 | 711-5-123 |
| 23-22H | 23 | 22H | 2-1/4-20 | 1-7/16-20 | 711-5-223 |
| 23-22D | 23 | 22D | 2-1/4-20 | 1-11/16-20 | 711-5-323 |
| 23-22DD | 23 | 22DD | 2-1/4-20 | 1-13/16-20 | 711-5-523 |
| 27-114/11AA | 27 | 11A or 11AA | M68X1.5 | 13/16-20 | 711-5-827 |
| 27-23 | 27 | 23 | M68X1.5 | 2-1/4-20 | 711-5-227 |
| 27-22DD | 27 | 22D | M68X1.5 | 1-11/16-20 | 711-5-327 |
| 22-22H | 27 | 22H | M68X1.5 | 1-7/16-20 | 711-5-427 |
| 27-22 | 27 | 22 | M68X1.5 | 1-3/16-20 | 711-5-527 |
| 22-22DD | 27 | 22DD | M68X1.5 | 1-13/16-20 | 711-5-627 |
