Spring Collets
Spring Collets

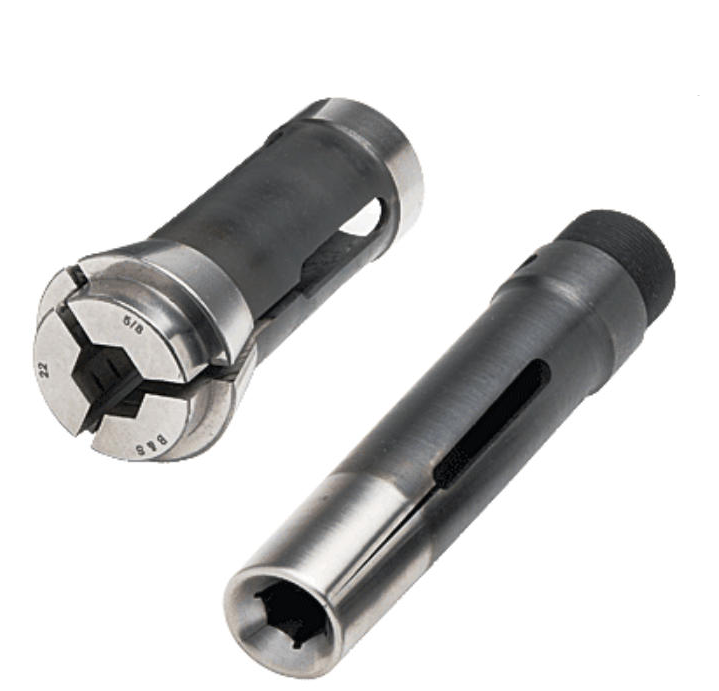

B&S Spring collets are designed and made with a high degree of concentricity that will result in correspondingly precise work. They hold the stock accurately and securely for smooth, fast operation. The heads are hardened and ground, and working stresses are distributed evenly throughout, resulting in a long wear life. Most round sizes come with concentric rings in the I.D.
| Collet | Over-all
(A) |
Bearing Back
(B) |
| 00 | 2-1/32” | 11/16” |
| 10 | 2-17/32” | 15/16” |
| 11 | 2-29/32” | 1-1/16” |
| 11C | 2-29/32” | 1-3/16” |
| 21 | 2-27/32” | 1-1/4” |
| 22 | 4-9/32” | 1-1/2” |
| 10B | 2-1/2” | 15/16” |
| 22B | 4-1/4” | 1-5/8” |
| 22C | 4-1/4” | 1-3/4” |
| 22D | 4-5/16” | 2-1/8” |
| 23A | 4.35” | 2.6” |
| 24 | 5” | 2-5/16” |
| 26 | 5-7/8” | 2-13/16” |
Spring collet sizes and part numbers are listed to the right. Limited quantities available. Call for updated pricing and availability. 800-533-3328.
When calling for availability, please provide the part number you are looking for. Otherwise, we will need to know the make and model of your machine. Spindle size and what size stock you are running, if you need round, square or hex.
For a complete listing of feeding fingers and part numbers see our “Feeding Fingers” specifications page.
Spring Collets
| Tool No. | Description |
| Spring Collets #00 | |
| 710-1004-100 | 00 COLLET 1/16 RD |
| 710-1005-100 | 00 COLLET 5/64 RD |
| 710-1006-100 | 00 COLLET 3/32 RD |
| 710-1007-100 | 00 COLLET 7/64 RD |
| 710-1008-100 | 00 COLLET 1/8 RD |
| 710-1009-100 | 00 COLLET 9/64 RD |
| 710-1010-100 | 00 COLLET 5/32 RD |
| 710-1011-100 | 00 COLLET 11/64 |
| 710-1012-100 | 00 COLLET 3/16 RD |
| 710-1013-100 | 00 COLLET 13/64 RD |
| 710-1014-100 | 00 COLLET 7/32 RD |
| 710-1015-100 | 00 COLLET 15/64 RD |
| 710-1016-100 | 00 COLLET 1/4 RD |
| 710-1017-100 | 00 COLLET 17/64 RD |
| 710-1018-100 | 00 COLLET 9/32 RD |
| 710-1019-100 | 00 COLLET 19/64 RD |
| 710-1020-100 | 00 COLLET 5/16 RD |
| 710-1021-100 | 00 COLLET 21/64 RD |
| 710-1022-100 | 00 COLLET 11/32 RD |
| 710-1023-100 | 00 COLLET 23/64 RD |
| 710-1024-100 | 00 COLLET 3/8 RD |
| 710-1025-100 | 00 COLLET 25/64 RD |
| 710-1026-100 | 00 COLLET 13/32 RD |
| 710-1027-100 | 00 COLLET 27/64 RD |
| 710-1028-100 | 00 COLLET 7/16 RD |
| 710-1029-100 | 00 COLLET 29/64 RD |
| 710-1030-100 | 00 COLLET 15/32 RD |
| 710-1031-100 | 00 COLLET 31/64 RD |
| 710-1032-100 | 00 COLLET 1/2 RD |
| 710-2008-100 | 00 COLLET 1/8 SQ |
| 710-2010-100 | 00 COLLET 5/32 SQ |
| 710-2012-100 | 00 COLLET 3/16 SQ |
| 710-2014-100 | 00 COLLET 7/32 SQ |
| 710-2016-100 | 00 COLLET 1/4 SQ |
| 710-3006-100 | 00 COLLET 3/32 SQ |
| 710-3008-100 | 00 COLLET 1/8 HX |
| 710-3010-100 | 00 COLLET 5/32 HX |
| 710-3012-100 | 00 COLLET 3/16 HX |
| 710-3014-100 | 00 COLLET 7/32 HX |
| 710-3016-100 | 00 COLLET 1/4 HX |
| 710-3018-100 | 00 COLLET 9/32 HX |
| 710-3020-100 | 00 COLLET 5/16 HX |
| Tool No. | Description |
| Spring Collets #10 | |
| 710-1004-110 | 10 COLLET 1/16 RD |
| 710-1005-110 | 10 COLLET 5/64 RD |
| 710-1006-110 | 10 COLLET 3/32 RD |
| 710-1007-110 | 10 COLLET 7/64 RD |
| 710-1008-110 | 10 COLLET 1/8 RD |
| 710-1009-110 | 10 COLLET 9/64 RD |
| 710-1010-110 | 10 COLLET 5/32 RD |
| 710-1011-110 | 10 COLLET 11/64 RD |
| 710-1012-110 | 10 COLLET 3/16 RD |
| 710-1013-110 | 10 COLLET 13/64 RD |
| 710-1014-110 | 10 COLLET 7/32 RD |
| 710-1015-110 | 10 COLLET 15/64 RD |
| 710-1016-110 | 10 COLLET 1/4 RD |
| 710-1017-110 | 10 COLLET 17/64 RD |
| 710-1018-110 | 10 COLLET 9/32 RD |
| 710-1019-110 | 10 COLLET 19/64 RD |
| 710-1020-110 | 10 COLLET 5/16 RD |
| 710-1021-110 | 10 COLLET 21/64 RD |
| 710-1022-110 | 10 COLLET 11/32 RD |
| 710-1023-110 | 10 COLLET 23/64 RD |
| 710-1024-110 | 10 COLLET 3/8 RD |
| 710-1025-110 | 10 COLLET 25/64 RD |
| 710-1026-110 | 10 COLLET 13/32 RD |
| 710-1027-110 | 10 COLLET 27/64 RD |
| 710-1028-110 | 10 COLLET 7/16 RD |
| 710-1029-110 | 10 COLLET 29/64 RD |
| 710-1030-110 | 10 COLLET 15/32 RD |
| 710-1031-110 | 10 COLLET 31/64 RD |
| 710-1032-110 | 10 COLLET 9/16 RD |
| 710-1036-110 | 10 COLLET 9/16 RD |
| 710-1040-110 | 10 COLLET 5/8 RD |
| 710-2008-110 | 10 COLLET 1/8 SQ |
| 710-2010-110 | 10 COLLET 5/32 SQ |
| 710-2012-110 | 10 COLLET 3/16 SQ |
| 710-2014-110 | 10 COLLET 7/32 SQ |
| 710-2016-110 | 10 COLLET 1/4 SQ |
| 710-2020-110 | 10 COLLET 5/16 SQ |
| 710-3008-110 | 10 COLLET 1/8 HX |
| 710-3010-110 | 10 COLLET 5/32 HX |
| 710-3012-110 | 10 COLLET 3/16 HX |
| 710-3014-110 | 10 COLLET 7/32 HX |
| 710-3016-110 | 10 COLLET 1/4 HX |
| 710-3018-110 | 10 COLLET 9/32 HX |
| 710-3020-110 | 10 COLLET 5/16 HX |
| 710-3022-110 | 10 COLLET 11/32 HX |
| 710-3024-110 | 10 COLLET 3/8 HX |
| 710-3026-110 | 10 COLLET 13/32 HX |
| 710-3028-110 | 10 COLLET 7/16 HX |
| Tool No. | Description |
| Spring Collets #11 | |
| 710-1004-111 | 11 COLLET 1/16 RD |
| 710-1005-111 | 11 COLLET 5/64 RD |
| 710-1006-111 | 11 COLLET 3/32 RD |
| 710-1007-111 | 11 COLLET 7/64 RD |
| 710-1008-111 | 11 COLLET 1/8 RD |
| 710-1009-111 | 11 COLLET 9/64 RD |
| 710-1010-111 | 11 COLLET 5/32 RD |
| 710-1011-111 | 11 COLLET 11/64 RD |
| 710-1012-111 | 11 COLLET 3/16 RD |
| 710-1013-111 | 11 COLLET 13/34 RD |
| 710-1014-111 | 11 COLLET 15/64 RD |
| 710-1015-111 | 11 COLLET 15/64 RD |
| 710-1016-111 | 11 COLLET 1/4 RD |
| 710-1017-111 | 11 COLLET 17/64 RD |
| 710-1018-111 | 11 COLLET 9/32 RD |
| 710-1019-111 | 11 COLLET 5/16 RD |
| 710-1020-111 | 11 COLLET 5/16 RD |
| 710-1021-111 | 11 COLLET 21/64 RD |
| 710-1022-111 | 11 COLLET 11/32 RD |
| 710-1023-111 | 11 COLLET 23/64 RD |
| 710-1024-111 | 11 COLLET 3/8 RD |
| 710-1025-111 | 11 COLLET 25/64 RD |
| 710-1026-111 | 11 COLLET 13/32 RD |
| 710-1027-111 | 11 COLLET 27/64 RD |
| 710-1028-111 | 11 COLLET 7/16 RD |
| 710-1029-111 | 11 COLLET 29/64 RD |
| 710-1030-111 | 11 COLLET 15/32 RD |
| 710-1031-111 | 11 COLLET 31/64 RD |
| 710-1031-111 | 11 COLLET 1/2 RD |
| 710-1033-111 | 11 COLLET 33/64 RD |
| 710-1034-111 | 11 COLLET 17/32 RD |
| 710-1035-111 | 11 COLLET 35/64 RD |
| 710-1036-111 | 11 COLLET 9/16 RD |
| 710-1037-111 | 11 COLLET 37/64 RD |
| 710-1038-111 | 11 COLLET 19/32 RD |
| 710-1039-111 | 11 COLLET 39/64 RD |
| 710-1040-111 | 11 COLLET 5/8 RD |
| 710-1044-111 | 11 COLLET 11/16 RD |
| 710-1052-111 | 11 COLLET 3/4 RD |
| 710-1052-111 | 11 COLLET 13/16 RD |
| 710-2008-111 | 11 COLLET 3/16 SQ |
| 710-2021-111 | 11 COLLET 3/16 SQ |
| 710-2016-111 | 11 COLLET 1/4 SQ |
| 710-2020-111 | 11 COLLET 5/16 SQ |
| 710-2024-111 | 11 COLLET 3/8 SQ |
| 710-2028-111 | 11 COLLET 7/16 SQ |
| 710-3010-111 | 11 COLLET 5/32 HX |
| 710-3012-111 | 11 COLLET 3/16 HX |
| 710-3016-111 | 11 COLLET 1/4 HX |
| 710-3018-111 | 11 COLLET 9/32 HX |
| 710-3020-111 | 11 COLLET 5/16 HX |
| 710-3022-111 | 11 COLLET 11/32 HX |
| 710-3024-111 | 11 COLLET 3/8 HX |
| 710-3026-111 | 11 COLLET 13/32 HX |
| 710-3028-111 | 11 COLLET 7/16 HX |
| 710-3030-111 | 11 COLLET 15/32 HX |
| 710-3032-111 | 11 COLLET 1/2 HX |
| 710-3036-111 | 11 COLLET 9/16 HX |
| 710-3040-111 | 11 COLLET 5/8 HX |
| Tool No. | Description |
| Spring Collets #11C | |
| 710-1034-211 | 11C COLLET 17/32 RD |
| 710-1036-211 | 11C COLLET 9/16 RD |
| 710-1038-211 | 11C COLLET 19/32 RD |
| 710-1040-211 | 11C COLLET 5/8 RD |
| 710-1042-211 | 11C COLLET 21/32 RD |
| 710-1044-211 | 11C COLLET 11/16 RD |
| 710-1046-211 | 11C COLLET 23/32 RD |
| 710-1048-211 | 11C COLLET 3/4 RD |
| 710-2032-211 | 11C COLLET 1/2 SQ |
| 710-3032-211 | 11C COLLET 1/2 HX |
| 710-3036-211 | 11C COLLET 9/16 HX |
| 710-3040-211 | 11C COLLET 5/8 HX |
| Tool No. | Description |
| Spring Collets #21 | |
| 710-1008-121 | 21 COLLET 1/8 RD |
| 710-1010-121 | 21 COLLET 5/32 RD |
| 710-1012-121 | 21 COLLET 3/16 RD |
| 710-1014-121 | 21 COLLET 7/32 RD |
| 710-1016-121 | 21 COLLET 1/4 RD |
| 710-1018-121 | 21 COLLET 9/32 RD |
| 710-1020-121 | 21 COLLET 5/16 RD |
| 710-1022-121 | 21 COLLET 11/32 RD |
| 710-1024-121 | 21 COLLET 3/8 RD |
| 710-1026-121 | 21 COLLET 13/32 RD |
| 710-1028-121 | 21 COLLET 7/16 RD |
| 710-1030-121 | 21 COLLET 15/32 RD |
| 710-1032-121 | 21 COLLET 1/2 RD |
| 710-1034-121 | 21 COLLET 17/32 RD |
| 710-1036-121 | 21 COLLET 9/16 RD |
| 710-1038-121 | 21 COLLET 19/32 RD |
| 710-1040-121 | 21 COLLET 5/8 RD |
| 710-1044-121 | 21 COLLET 11/16 RD |
| 710-1048-121 | 21 COLLET 3/4 RD |
| 710-1052-121 | 21 COLLET 13/16 RD |
| 710-1056-121 | 21 COLLET 7/8 RD |
| 710-1060-121 | 21 COLLET 15/16 RD |
| 710-1064-121 | 21 COLLET 1 RD |
| 710-2016-121 | 21 COLLET 1/4 SQ |
| 710-2020-121 | 21 COLLET 5/16 SQ |
| 710-2024-121 | 21 COLLET 3/8 SQ |
| 710-2028-121 | 21 COLLET 7/16 SQ |
| 710-2032-121 | 21 COLLET 1/2 SQ |
| 710-2036-121 | 21 COLLET 9/16 SQ |
| 710-3016-121 | 21 COLLET 5/16 HX |
| 710-3020-121 | 21 COLLET 5/16 HX |
| 710-3024-121 | 21 COLLET 3/8 HX |
| 710-3028-121 | 21 COLLET 7/16 HX |
| 710-3032-121 | 21 COLLET 1/2 HX |
| 710-3044-121 | 21 COLLET 11/16 HX |
| 710-3048-121 | 21 COLLET 3/4 HX |
| Tool No. | Description |
| Spring Collets #22 | |
| 710-1008-122 | 22 COLLET 1/8 RD |
| 710-1010-122 | 22 COLLET 5/32 RD |
| 710-1012-122 | 22 COLLET 3/16 RD |
| 710-1014-122 | 22 COLLET 7/32 RD |
| 710-1016-122 | 22 COLLET 1/4 RD |
| 710-1018-122 | 22 COLLET 9/32 RD |
| 710-1020-122 | 22 COLLET 5/16 RD |
| 710-2021-122 | 22 COLLET 21/34 RD |
| 710-1022-122 | 22 COLLET 11/32 RD |
| 710-1023-122 | 22 COLLET 23/64 RD |
| 710-1024-122 | 22 COLLET 3/8 RD |
| 710-1025-122 | 22 COLLET 25/64 RD |
| 710-1026-122 | 22 COLLET 13/32 RD |
| 710-1027-122 | 22 COLLET 27/64 RD |
| 710-1028-122 | 22 COLLET 7/16 RD |
| 710-1029-122 | 22 COLLET 29/34 RD |
| 710-1030-122 | 22 COLLET 15/32 RD |
| 710-1031-122 | 22 COLLET 31/64 RD |
| 710-1032-122 | 22 COLLET 1/2 RD |
| 710-1033-122 | 22 COLLET 33/64 RD |
| 710-1034-122 | 22 COLLET 17/32 RD |
| 710-1035-122 | 22 COLLET 35/64 RD |
| 710-1036-122 | 22 COLLET 9/16 RD |
| 710-1037-122 | 22 COLLET 37/64 RD |
| 710-1038-122 | 22 COLLET 19/32 RD |
| 710-1039-122 | 22 COLLET 39/64 RD |
| 710-1040-122 | 22 COLLET 5/8 RD |
| 710-1041-122 | 22 COLLET 41/64 RD |
| 710-1042-122 | 22 COLLET 21/32 RD |
| 710-1043-122 | 22 COLLET 43/64 RD |
| 710-1044-122 | 22 COLLET 11/16 RD |
| 710-1045-122 | 22 COLLET 45/64 RD |
| 710-1046-122 | 22 COLLET23/32 RD |
| 710-1047-122 | 22 COLLET 47/64 RD |
| 710-1048-122 | 22 COLLET 3/4 RD |
| 710-1049-122 | 22 COLLET 49/64 RD |
| 710-1050-122 | 22 COLLET 25/32 RD |
| 710-1051-122 | 22 COLLET 51/64 RD |
| 710-1052-122 | 22 COLLET 13/16 RD |
| 710-1053-122 | 22 COLLET 53/64 RD |
| 710-1054-122 | 22 COLLET 27/32 RD |
| 710-1055-122 | 22 COLLET 55/64 RD |
| 710-1056-122 | 22 COLLET 7/8 RD |
| 710-1057-122 | 22 COLLET 57/64 RD |
| 710-1058-122 | 22 COLLET 29/32 RD |
| 710-1059-122 | 22 COLLET 59/64 RD |
| 710-1060-122 | 22 COLLET 15/16 |
| 710-1061-122 | 22 COLLET 61/64 RD |
| 710-1062-122 | 22 COLLET 31/32 RD |
| 710-1064-122 | 22 COLLET 1 RD |
| 710-2016-122 | 22 COLLET 1/4 SQ |
| 710-2020-122 | 22 COLLET 5/16 SQ |
| 710-2024-122 | 22 COLLET 3/8 SQ |
| 710-2028-122 | 22 COLLET 7/16 SQ |
| 710-2032-122 | 22 COLLET 1/2 SQ |
| 710-2036-122 | 22 COLLET 9/16 SQ |
| 710-2040-122 | 22 COLLET 5/8 SQ |
| 710-2044-122 | 22 COLLET 11/16 SQ |
| 710-3016-122 | 22 COLLET 1/4 HX |
| 710-3020-122 | 22 COLLET 5/16 HX |
| 710-3024-122 | 22 COLLET 3/8 HX |
| 710-3028-122 | 22 COLLET 7/16 HX |
| 710-3032-122 | 22 COLLET 1/2 HX |
| 710-3036-122 | 22 COLLET 9/16 HX |
| 710-3040-122 | 22 COLLET 5/8 HX |
| 710-3044-122 | 22 COLLET 11/16 HX |
| 710-3048-122 | 22 COLLET 3/4 HX |
| 710-3052-122 | 22 COLLET 13/16 HX |
| Tool No. | Description |
| Spring Collets #22C | |
| 710-6102-322 | 22C COLLET 1-1/32 RD |
| 710-6104-322 | 22C COLLET 1-1/16 RD |
| 710-6106-322 | 22C COLLET 1-3/32 RD |
| 710-6108-322 | 22C COLLET 1-1/8 RD |
| 710-6110-322 | 22C COLLET 1-5/32 RD |
| 710-6112-322 | 22C COLLET 1-3/16 RD |
| 710-6114-322 | 22C COLLET 1-7/32 RD |
| 710-6116-322 | 22C COLLET 1-1/4 RD |
| 710-7048-322 | 22C COLLET 3/4 SQ |
| 710-7052-322 | 22C COLLET 13/16 SQ |
| 710-7056-322 | 22C COLLET 7/8 SQ |
| 710-8060-322 | 22C COLLET 15/16 SQ |
| 710-8064-322 | 22C COLLET 1 HX |
| 710-8104-322 | 22C COLLET 1-1/16 HX |
| Tool No. | Description |
| Spring Collets #22D | |
| 710-6102-422 | 22D COLLET 1-1/32 RD |
| 710-6104-422 | 22D COLLET 1-1/16 RD |
| 710-6106-422 | 22D COLLET 1-3/32 RD |
| 710-6108-422 | 22D COLLET 1-1/8 RD |
| 710-6110-422 | 22D COLLET 1-5/32 RD |
| 710-6112-422 | 22D COLLET 1-3/16 RD |
| 710-6114-422 | 22D COLLET 1-7/32 RD |
| 710-6116-422 | 22D COLLET 1-1/4 RD |
| 710-6120-422 | 22D COLLET 1-5/16 RD |
| 710-6124-422 | 22D COLLET 1-3/8 RD |
| 710-6128-422 | 22D COLLET 1-7/16 RD |
| 710-6132-422 | 22D COLLET 1-1/2 RD |
| 710-6136-422 | 22D COLLET 1-9/16 RD |
| 710-6140-422 | 22D COLLET 1-5/8 RD |
| 710-7048-422 | 22D COLLET 3/4 SQ |
| 710-7052-422 | 22D COLLET 13/16 SQ |
| 710-7056-422 | 22D COLLET 7/8 SQ |
| 710-7064-422 | 22D COLLET 1 SQ |
| 710-7104-422 | 22D COLLET 1-1/16 SQ |
| 710-7108-422 | 22D COLLET 1-1/8 SQ |
| 710-8060-422 | 22D COLLET 15/16 HX |
| 710-8064-422 | 22D COLLET 1 HX |
| 710-8104-422 | 22D COLLET 1-1/16 HX |
| 710-8108-422 | 22D COLLET 1-1/8 HX |
| 710-8112-422 | 22D COLLET 1-3/16 HX |
| 710-8116-422 | 22D COLLET 1-1/4 HX |
| 710-8120-422 | 22D COLLET 1-5/16 HX |
| 710-8124-422 | 22D COLLET 1-3/8 HX |
| Spring Collets #23A | |
| Tool No. | Description |
| 710-6204-223 | 23A COLLET 2-1/16 RD |
| 710-6208-223 | 23A COLLET 2-1/8 RD |
| 710-6212-223 | 23A 2-3/16 RD |
| 710-6216-223 | 23A COLLET 2-1/4 RD |
| 710-6220-223 | 23A COLLET 2-5/16 RD |
| 710-6224-223 | 23A COLLET 2-3/8 RD |
| 710-8152-223 | 23A COLLET 1-13/16 HX |
| 710-8156-223 | 23A COLLET 1-7/8 HX |
| 710-8160-223 | 23A COLLET 1-15/16 HX |
| 710-8164-223 | 23A COLLET 2 HX |
| SPRING COLLET #107 | |
| Tool No. | Description |
| 710-1004-107 | 107 COLLET 1/16 RD |
| 710-1006-107 | 107 COLLET 3/32 RD |
| 710-1008-107 | 107 COLLET 1/8 RD |
| 710-1010-107 | 107 COLLET 5/32 RD |
| 710-1012-107 | 107 COLLET 3/16 RD |
| 710-1014-107 | 107 COLLET 7/32 RD |
| 710-1016-107 | 107 COLLET 1/4 RD |
| 710-1018-107 | 107 COLLET 9/32 RD |
| 710-1020-107 | 107 COLLET 5/16 RD |
| 710-1022-107 | 107 COLLET 11/32 RD |
| 710-1024-107 | 107 COLLET 3/8 RD |
| 710-1028-107-1 | 107 COLLET 7/16 RD |
| 710-1032-107-1 | 107 COLLET 1/2 RD |
| SPRING COLLET #108 | |
| Tool No. | Description |
| 710-1016-108 | 108 COLLET 1/4 RD |
| 107-1020-108 | 108 COLLET 5/16 RD |
| 710-1024-108 | 108 COLLET 3/8 RD |
| 710-1028-108 | 108 COLLET 7/16 RD |
| 710-1032-108 | 108 COLLET 1/2 RD |
| 710-1036-108 | 108 COLLET 9/16 RD |
| SPRING COLLET #109 | |
| Tool No. | Description |
| 710-1016-109 | 109 COLLET 1/4 RD |
| 710-1020-109 | 109 COLLET 5/16 RD |
| 710-1024-109 | 109 COLLET 3/8 RD |
| 710-1028-109 | 109 COLLET 7/16 RD |
| 710-1032-109 | 109 COLLET 1/2 RD |
| 710-1040-109 | 109 COLLET 5/8 RD |
| 710-1044-109 | 109 COLLET 11/16 RD |
| 710-1048-109 | 109 COLLET 3/4 RD |
