End Mill/Straight Shank Tool
End Mill/Straight Shank Tool
The quick and simple low-cost way to boost productivity and increase machine utilization.

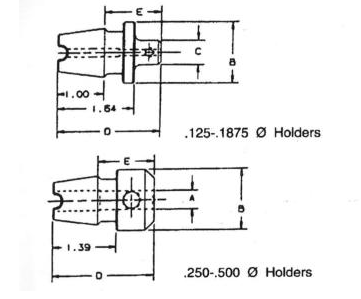

| Part No. | A DIA | B DIA | C DIA | D | E | Size |
| 210111 | 0.125 | 1.25 | 0.5 | 2.19 | 1.19 | RC-1 |
| 210117 | 0.1875 | 1.25 | 0.5 | 2.19 | 1.19 | RC-1 |
| 210125 | 0.25 | 1.25 | – | 2.19 | 1.19 | RC-1 |
| 210131 | 0.3125 | 1.25 | – | 2.19 | 1.19 | RC-1 |
| 210138 | 0.375 | 1.25 | – | 2.19 | 1.19 | RC-1 |
| 210140 | 0.4375 | 1.25 | – | 2.19 | 1.19 | RC-1 |
| 210150 | .05 | 1.25 | – | 2.19 | 1.19 | RC-1 |
