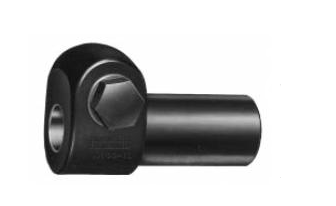

Adapters Model H

Adapters Model H

Precision tool adapters are used in screw machines, turret lathes, and CNC lathes.

The precision adapter is designed to allow the use of turret tools in machines larger than those for which the tools were designed. The adapter is of particular advantage when working on small diameters or on long pieces where interferences occur with larger size tools built for a particular machine. The adapter permits the use of smaller diameter shank tools n machines with larger shank capacities.

Model 00/0H 00/2H 0/2H
Ordering Number 8525 8550 8575


Dimensions

A 3/4 1 1
B 5/8 5/8 3/4
C 1-7/16 1-1/2 2-1/16
D 1-1/2 2 2
E 1-7/16 1-3/4 1-3/4
F 1-1/8 1-1/8 1-1/8
G 3/4 1/16 1-1/16
These Boyar adapters are the recommended alternative adapters to the B&S Line. See conversion chart below:
Turret Holder Tool Shank Diameter B&S Tool No.   Boyar Tool No.
3/4” 5/8” 711-260-120 0008525
1” 5/8” 711-260-122 0008550
1” 3/4” 711-160-222 0008575
1-1/4” 1” 712-260-1125
1-1/2” 1” 712-260-1150
1-3/4” 1” 712-260-1175
